Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

Name: Touch Screen Dual Objective Automatic Turret Digital Brinell Hardness Tester HBST3000ZS
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : HBST-3000ZS

MOQ : 1 Set

Payment Terms : T/T, Western Union

Supply Ability : 10 Sets per Month

Delivery Time : 10 Working Days

Packaging Details : Plywood Pallet

Measuring eyepiece : digital micrometer eyepiece and data calculation system, enabling hardness values to be displayed directly with a single click

Data Output : Optional USB export of measurement data, or editing and exporting test reports through host computer software

Data Saving : Can store 100 sets of test data, display average value and test number

stepper motor : for automatic loading and unloading of test force, producing less noise during testing

calibration : HBST-3000ZS comes with calibration function

indentation measurement : Automatically inputs indentation diameter, displays hardness values

Contact Now

Touch Screen Dual

Objective Automatic Turret Digital Brinell Hardness Tester HBST-3000ZS

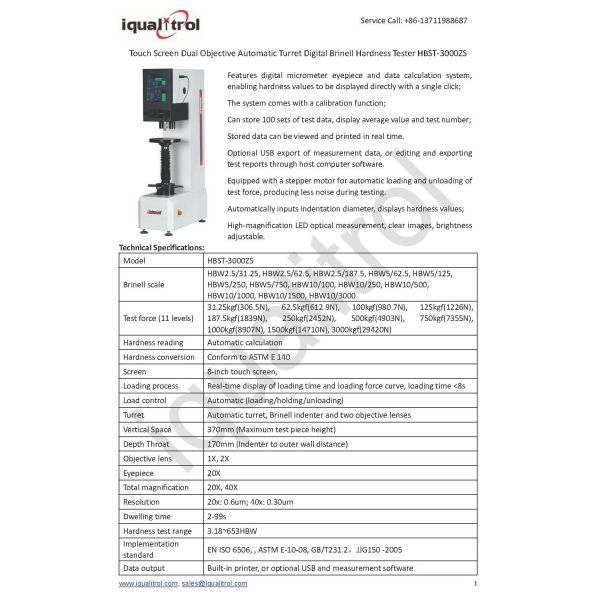

Download Technical Data: Brinell Hardness Tester HBST-3000ZS

Download Operation Manual: HBST-3000ZS Operation Manual

Technical Specifications:

Model	HBST-3000ZS
Brinell scale	HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test force (11 levels)	31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Hardness reading	Automatic calculation
Hardness conversion	Conform to ASTM E 140
Screen	8-inch touch screen,
Loading process	Real-time display of loading time and loading force curve, loading time <8s
Load control	Automatic (loading/holding/unloading)
Turret	Automatic turret, Brinell indenter and two objective lenses
Vertical Space	370mm (Maximum test piece height)
Depth Throat	170mm (Indenter to outer wall distance)
Objective lens	1X, 2X
Eyepiece	20X
Total magnification	20X, 40X
Resolution	20x: 0.6um; 40x: 0.30um
Dwelling time	2-99s
Hardness test range	3.18~653HBW
Implementation standard	EN ISO 6506, , ASTM E-10-08, GB/T231.2,JJG150 -2005
Data output	Built-in printer, or optional USB and measurement software
Power supply	AC220+5%,50~60Hz
Dimensions (mm)	5952451000mm
Main unit weight	About 175kg
